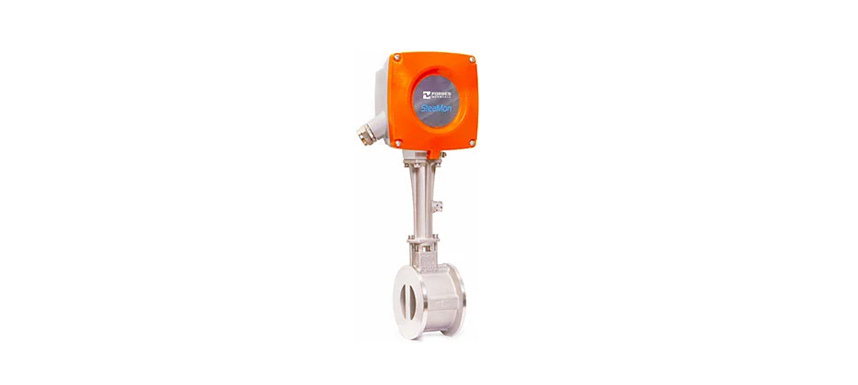

SteaMon™ is a robust, 2-wire vortex flow measurement device engineered specifically for saturated steam applications, capable of precisely measuring both volumetric and mass flow rates using the shedding frequency principle.

Designed with integrated temperature and density compensation, SteaMon™ operates perfectly even under fluctuating process conditions. It utilizes a fully welded stainless-steel structure to resist high corrosion, pressures, and temperatures, ensuring accurate measurement data that helps plant managers continuously control steam consumption and accurately diagnose leaks.

Key Technical Specifications:
• Pipeline Connection Sizes: DN 25, 40, 50, 80, and 100 / 1″, 1.5″, 2″, 3″, and 4″ (Sandwich version)
• Operating Temperature Limit: -20°C to +210°C / -4°F to +410°F maximum
• Ambient Temperature Limit: -20°C to +70°C / -4°F to +150°F
• Product Pressure Limit: Maximum 17.5 bar g / 253.81 psi g
• Measurement Accuracy: ± 2% of reading for flow rate measurement
• Power Supply: 15-36 V DC (2-wire loop powered)
• Protection Category: IP65

Downloads

Technical Information Sheet
• SteaMon
