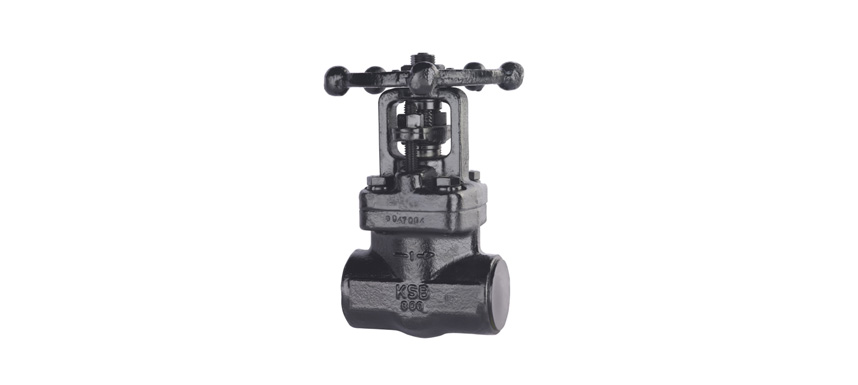

Forged Gate Valve GTF 800-2500

The KSB Check Gate Valve 800–2500 Type GTF is an accurately designed, check steel valve made to offer hard functionality in high-pressure and high-temperature applications. Whether it's thermal power plants, refineries, or process industries, this check valve ensures safe one-way flow and safeguards critical equipment by preventing low water.

Built with check carbon or alloy steel and solid in structure, this valve provides ideal strength, tight shutdown, and excellent performance under demanding conditions.

Product Specifications

Valve Type	Forged Check Valve
Pressure Class	ASME 800 / 1500 / 2500
Size Range	15 mm to 50 mm (½" to 2")
Body Material	ASTM A105, A182 F11, F22, F91
Design Standard	BS 5352 / API 602
Bonnet Options	Bolted Bonnet / Pressure Seal Bonnet
End Connections	Socket Weld – ASME B16.11, Screwed Ends – ASME B1.20.1 (NPT), Butt Weld Ends – ASME B16.25
Face-to-Face Dimensions	ASME B16.10 (Short Pattern)
Testing Standards	API 598 / BS 6755
Trim Options	Trim Nos. 5, 8, 10, 12

Key Advantages

Preservation Functionality: : Automatically prevents reverse flow to protect sensitive systems.
Solid & Lightweight Design: : Ideal for installations where space is limited without compromising on pressure performance.
Forged Steel Body: : Offers higher strength and thermal resistance under tough service conditions.
Tight Shut-off Capability: : Ensures leak-proof operation and expanded service life.
Ease of Maintenance: : Available with bolted or pressure seal bonnet for simple servicing and inspection.
Multiple End Options: : Comfort with various piping configurations, offering excellent flexibility.
Meets Global Standards: : Designed as per API and BS specifications for high safety.
