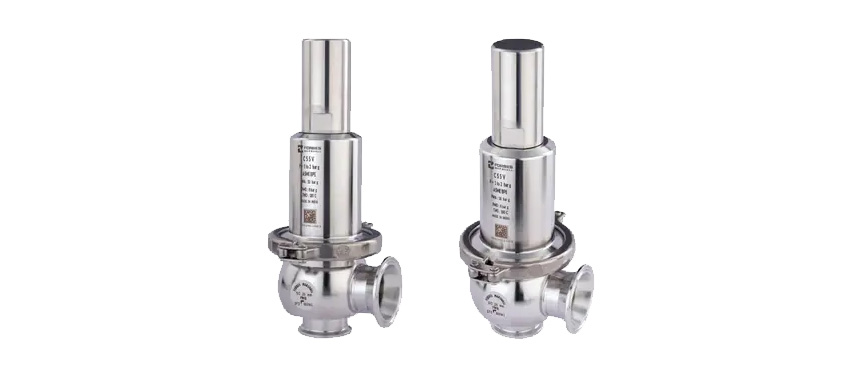

The Forbes Marshall Clean Steam Safety Valve is an angle pattern sanitary safety relief valve with stainless steel construction suitable for high purity steam, gas and liquid systems. The valve opens with a gradual action once the set pressure is reached.

When the overpressure reaches 10% of the set pressure, it opens to its full capacity. When the system pressure is restored, the valve will reset with positive action.

Typical applications of clean steam safety valves include:
• Clean and pure steam
• Water for injection (WFI)
• Purified water (PW)
• Compressed air supply to bioreactors, centrifuges
• lyophilisers, sterilisers, process vessels, storage tanks and other gas and liquid applications.

Downloads

Technical Information Sheet
• CSSV
